Applications>Medical Device Connectivity>LTE and 5G connectivity

Lte and 5G connectivity in healthcare

Safe and reliable connection

The integration of LTE and 5G technology is transforming healthcare by enabling secure, flexible and fast connectivity for a wide range of medical applications - from mobile pop-up clinics and telemedicine to connected ambulances and IoT devices for patient monitoring.


Suitable for the following areas of application:

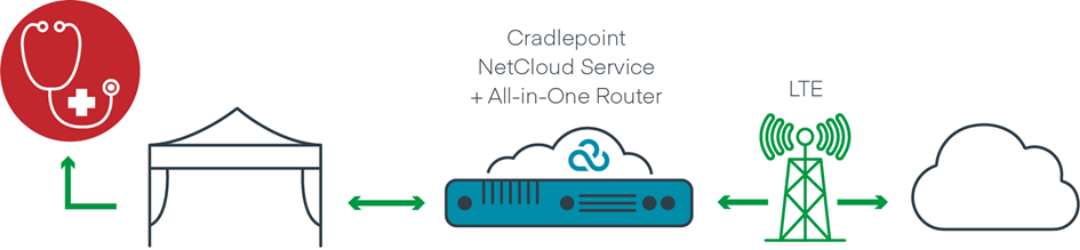

1.  Pop-up clinics

  • Importance: Pop-up clinics such as mobile testing and vaccination centers are flexible and can be set up anywhere in a short time without the need for a wired internet connection.
  • Cradlepoint Solution: LTE and 5G routers managed via the NetCloud service platform provide a secure and reliable wireless connection, even without on-site IT professionals.

2.  Telemedicine

  • Importance: Stable, fast connections are crucial for telemedicine in order to be able to care for patients remotely via video conferencing.
  • Cradlepoint Solution: LTE and 5G routers with high bandwidth and low latency enable smooth video transmissions for telemedicine applications.


3.  IoT in Health Care

  • Importance: Connected medical devices collect important patient data that can be analyzed in real time to improve care.
  • Cradlepoint Solution: Wireless edge routers with Bluetooth and cloud connectivity enable the secure transmission of data from IoT devices and sensors for real-time analysis by specialists.

We would also be happy to advise you in a personal meeting ⇨ Contact us here.

Product Solution

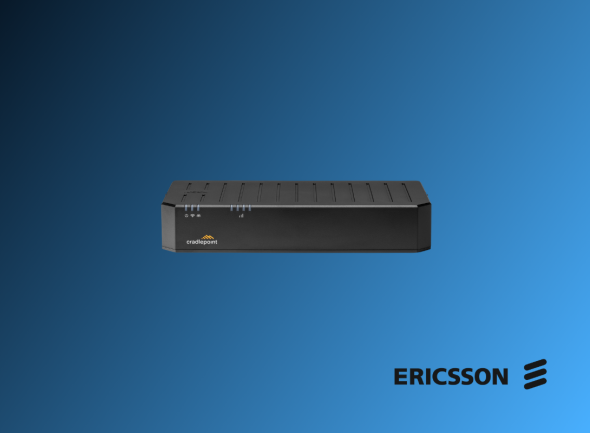

Cradlepoint E100
  • Cloud-Management
  • Wireless connectivity: 5G NR & Cat 19 LTE or Cat 7 LTE
  • 5G integration
  • Ethernet ports: 5 x GbE
  • USB ports: 1
  • Throughput: 850 Mbps (firewall)
  • Number of VPN tunnels: 20
  • Wi-Fi: Dual-band, dual-parallel; 802.11ac (Wi-Fi 5)
  • GNSS: Passive
  • PoE: no
  • Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Rack-mountable: no
  • Private cellular network: yes - CBRS, 4G LTE, 5G
  • Battery option: yes
You can find out more about the product in our store

Product Solution

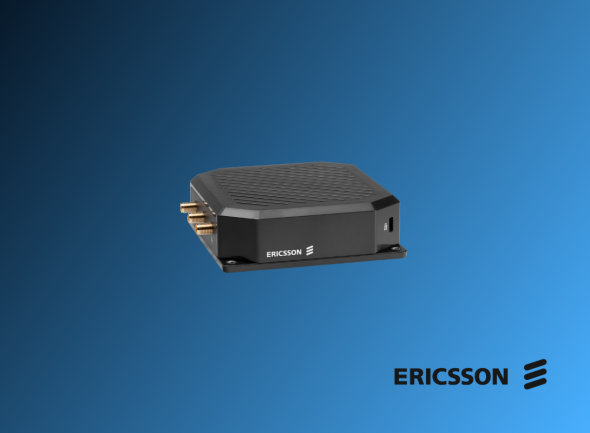

Cradlepoint S400
  • Cloud-Management
  • Wireless connectivity: LTE
  • Ethernet ports: 1 GbE (LAN/WAN switchable); 2 FE (expansion module)
  • USB ports: 1, Serial ports: 1 (expansion module)
  • Dual modem support: No
  • Network operator standards: PTCRB (USA), GCF (global)
  • Throughput: 95 Mbps (firewall)
  • Number of VPN tunnels: 5
  • Wi-Fi: Single-radio, dual-band, non-parallel (2.4 GHz and 5 GHz), 1x1 SISO 802.11ac (Wi-Fi 5)
  • GNSS: Passive
  • PoE: Yes
  • Operating temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Private cellular network: Yes - 4G LTE (CBRS)
You can find out more about the product in our store

This might also interest you

Medical Device Server
UL and IEC 60601 compliant
Wired IoT Medical Device Servers are optimized for use in the medical sector with their security functions and management and access settings and are used to constantly manage and monitor medical devices.
Learn more
Wireless IoT Gateways
Certified for medical devices
Thanks to its wireless connectivity and comprehensive security standards, the certified Lantronix SGX 5150 Wireless IoT Gateway is ideal for environments where secure and reliable monitoring and management of medical devices is required.
Learn more
Wi-Fi in the hospital
Reliable Wi-Fi infrastructure
With innovative solutions such as Ethernet to Wi-Fi Bridges from Silex, a reliable infrastructure for WLAN connectivity and thus a future-oriented focus for the central management of hospitals can be created.
Learn more
