NEW RELEASE:
PX4 Rack PDU by Raritan
28. March 2024 | Planegg
WITH THE LATEST PX4 RACK PDU; RARITAN EXTENDS THE OPPORTUNITIES FOR UTILIZATION; MONITORING; AND PROTECTION OF MISSION-CRITICAL IT POWER SUPPLIES IN THE RACK:
Benefit from new, innovative functions such as hybrid C13 / C19 outlets, extended power quality information, increased measurement accuracy of +/- 0.5% and many more. Together with the established and proven features of Raritan rack PDUs, these features enable power distribution and monitoring at the highest level.
The PX4 Rack PDU provides constant monitoring of relevant parameters to identify shortages at an early stage and to prevent outages in the data center. Use the new PX4 Rack PDU by Raritan in your rack and protect your productivity while optimizing the energy efficiency of your IT power supply!
MONITORING AND CONTROL OF IT POWER SUPPLY TO SECURE PRODUCTIVITY AND ENERGY EFFICIENCY
- PDUs for all applications - for optimal, cost-saving product selection: 1ph/3ph / up to 100kW / up to 54 outlets, 0U or rack design
- Innovative outlet design for maximum flexibility: Cx-hybrid outlets can be used equally as C13 and C19, HDOT design for increased outlet density
- Space-saving power supply design: 45˚ power supply enables flexible cable routing for the smallest possible space requirement
- Ensuring an efficient energy supply: Capturing and visualizing the harmonic distortion of the power supply and at outlets to monitor power quality
- Fastest problem load identification when the circuit breaker is triggered: Forensics and waveform recording to identify the outlet causing the problem.
RELIABLE FEATURES:
Use in ambient temperatures up to +60°C
Dual network access
Color display for quick reading in the rack
Bistable relays for the switchable PDUs
USB port features - mass configuration, cascading, and much more.
Optional residual current measurement function
FIND OUT MORE IN THE VIDEO:

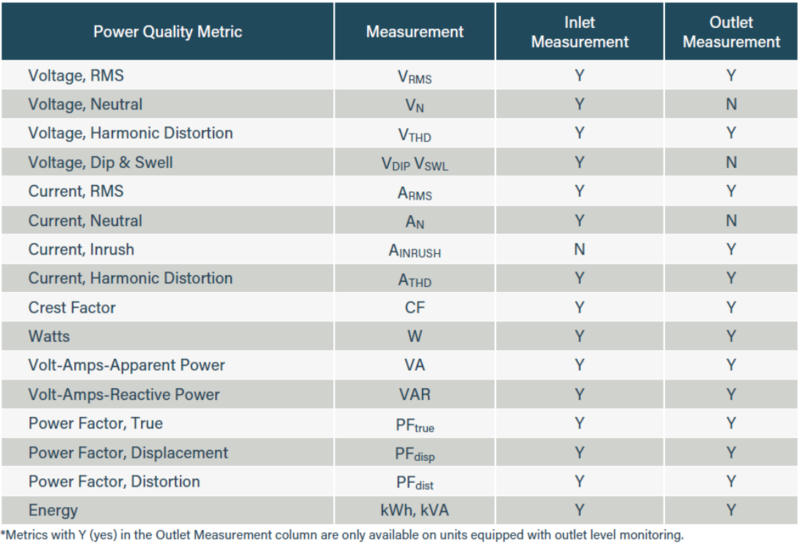

PX4 MEASURING PARAMETERS FOR MONITORING ENERGY SUPPLY AND QUALITY
COMBINATION OPTIONS

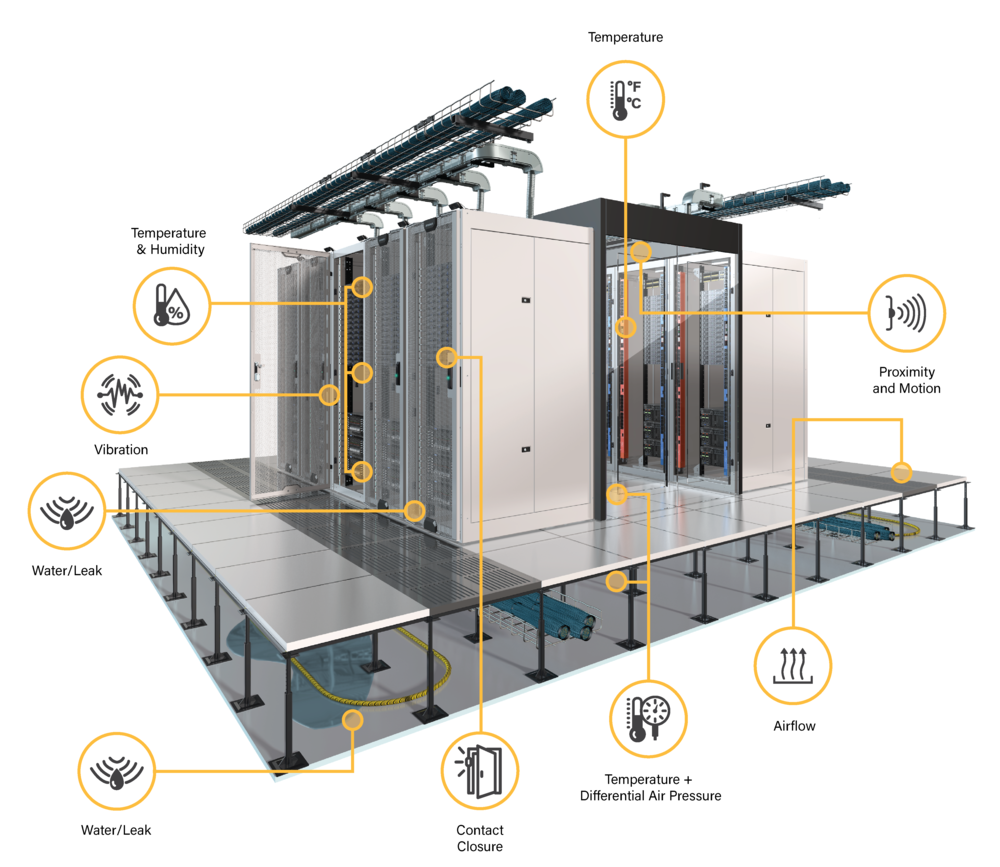

Combine the PX4 Rack PDU with environmental sensors to operate your data center even more effectively
To select the right product from Raritan's PX range for your needs, please use the Raritan Product Selector or contact us directly here for your offer at Atlantik Systeme.
All information about the Raritan PX4 Rack PDU can be found here in compact form: PX4 Rack PDU Brochure.
